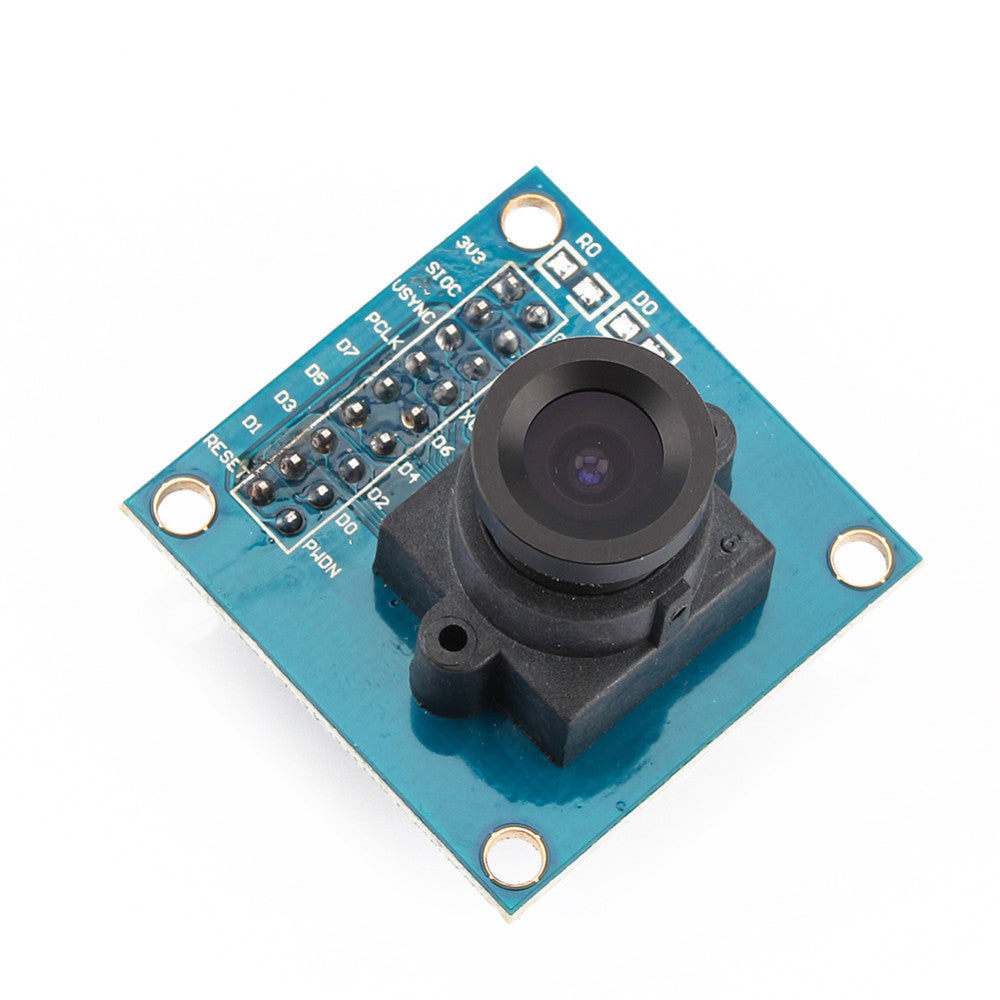

Módulo Cámara VGA OV7670
Módulo de Cámara VGA OV7670. CMOS 640X480 SCCB w/I2C
Características
Photosensitive Array: 640 x 480; IO
Voltaje: 2.5V to 3.0V
Operationg Power: 60mW/15fpsVGAYUV
Sleeping Mode: <20uA
Operating Temperature: -30 to 70 deg C
Output Format YUV/YCbCra:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit);
Lens Size: 1/6"; Vision Angle: 25 degree
Max. Frame Rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to Noise Ratio: 46 dB
DynamicRange: 52 dB
Browse Mode: by row
Electronic Exposure: 1 to 510 row
Pixel Coverage: 3.6um x 3.6um
Duck Cirrent: 12 mV/s at 6'C
Especificaciones
Color: Black + Blue
Application
High sensitivy for low-light operation
Low operating voltage for embedded application
Standard SCCB interface compatible with I2C interface
Raw RGB, RGB (GRB4:2:2, RGB565/555/444), YUV(4:2:2) and; YCbCr(4:2:2) output format
Support VGA, CIF and from CIF to 40 x 30 format
Vario Pixel method for sub-sampling; Auto image Control: AEC, AGC, AWB, ABF, ABLC
Image Quality Control: Color saturation, hue, gamma, sharpness andanti-blooming
ISP includes moise reduction and defect correction; Suppor image scaling; lens shading correction
Flicker 50/60 Hz auto detection
Color saturation level auto adjunst
Adge enhancement level auto adjust
De-noise level auto adjust
