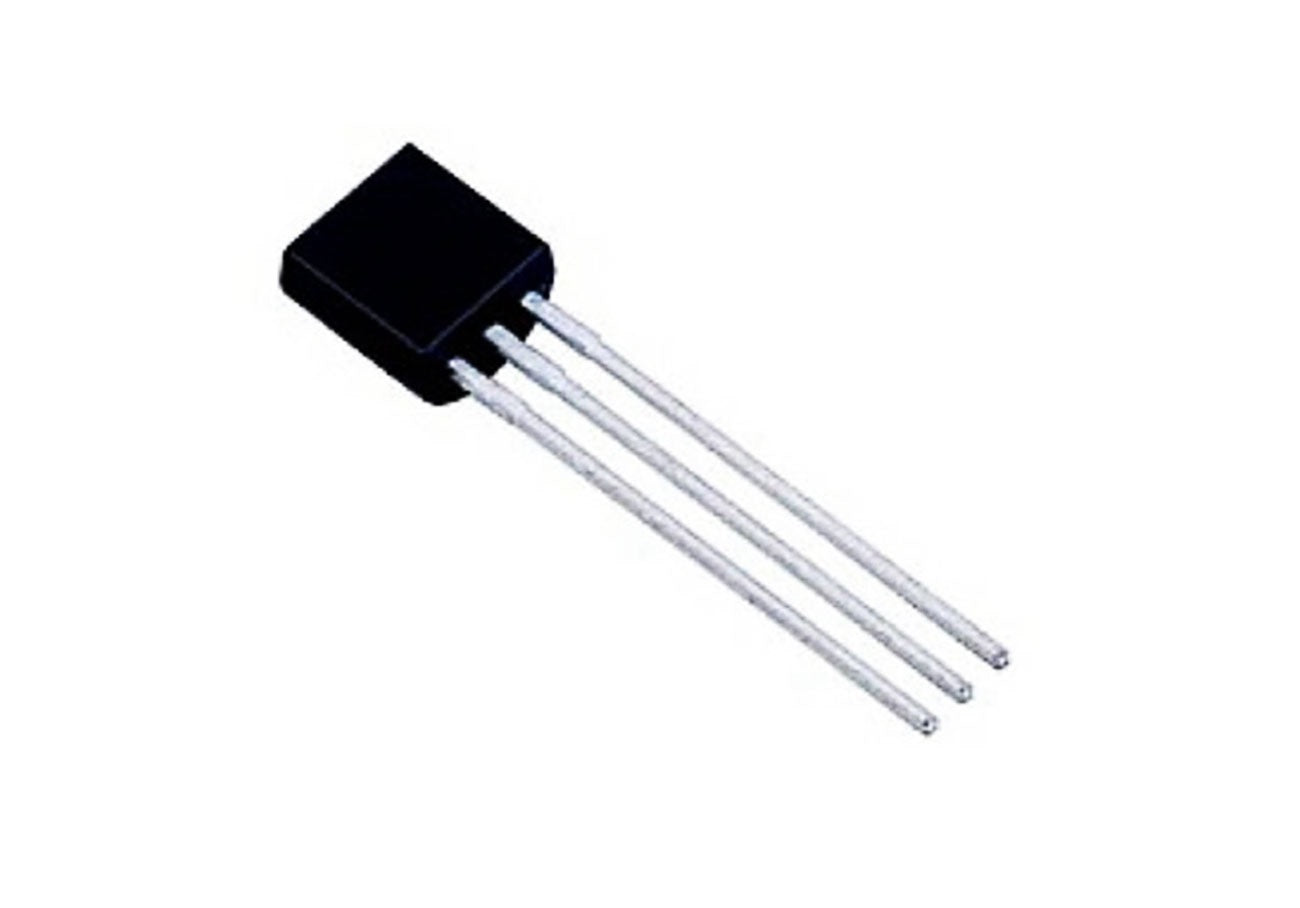

Transistor 2N3906

Transistor 2N3906   Type Designator: 2N3906 Material of Transistor: Si Polarity: PNP Maximum Collector Power Dissipation (Pc): 0.31 W Maximum Collector-Base Voltage |Vcb|: 40 V Maximum Collector-Emitter Voltage |Vce|: 40 V Maximum Emitter-Base Voltage |Veb|: 5 V Maximum Collector Current |Ic max|: 0.2 A Max. Operating Junction Temperature (Tj): 135 °C Transition Frequency (ft): 250 MHz Collector Capacitance (Cc): 5 pF Forward Current Transfer Ratio (hFE), MIN: 100 Package: TO92
